Overview
This kind of product is assembled by O-type floating ball valve or fixed ball valve body part gas and fine piston type single and double acting actuator. It has the characteristics of small volume, circulation capacity, light weight, large output torque and stable and reliable action. Due to the shearing function between the core and the valve seat, it is suitable for the control of fluids such as suspended solids, high viscosity, low pulp and pulverized coal. It is also suitable for the control of various gases and fluids.
The main technical parameters
Valve body
Type: Casting split ball valve
Nominal diameter: DN20 ~ 400; pneumatic O-type ball valve
Nominal pressure: PN1.6, 4.0, 6.4MPa, PN16 convex surface PN40, 64 convex and concave surface
Connection type: flange connection
Body and bonnet material: WCB (SCPH2), CF8 (304), CF8M (316) CF3M (316L)
Internal parts material: CF8M (316), CF3M (316L), PTFE, PPL
Applicable temperature: normal temperature type -40 to 230 ° C, medium temperature type -40 to 350 ° C, high temperature type -40 to 450 ° C
Filling: V-type PTFE, asbestos braided packing
In-valve assembly
Spool type: ball spool
Flow characteristics: quick opening
Sealing type: metal seal, soft seal
Leakage: GB4213/T Class III (hard seal), "0" (soft seal)
Executive agency
Type: DA double acting piston actuator, SR single acting piston actuator, AW, GT×N piston actuator
Air source pressure: 0.4 ~ 0.6MPa
Rated angle: 90°
Accessories: solenoid valve, travel switch, handwheel mechanism, etc.
Rated KV value
| DN | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KV | 72 | 110 | 170 | 270 | 380 | 510 | 940 | 1400 | 2200 | 3500 | 5000 | 8600 | 12000 | 16000 |

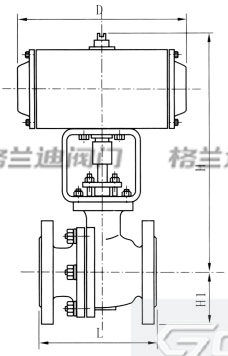

Dimensions
| DN | L | H | H1 | D | |
|---|---|---|---|---|---|
| Floating ball | Fixed ball | ||||
| 25 | 150 | 165 | 320 | 60 | 222 |
| 32 | 165 | 178 | 350 | 70 | |
| 40 | 180 | 190 | 370 | 75 | 294 |
| 50 | 200 | 216 | 380 | 85 | |
| 65 | 220 | 241 | 410 | 95 | 300 |
| 80 | 250 | 283 | 420 | 105 | |
| 100 | 280 | 305 | 555 | 115 | 380 |
| 125 | 320 | 381 | 660 | 125 | |
| 150 | 360 | 403 | 724 | 140 | 150 |
| 200 | 457 | 502 | 774 | 170 | 603 |
| 250 | 533 | 568 | 885 | 205 | 683 |
| 300 | 610 | 648 | 950 | 230 | 720 |
| 350 | 686 | 762 | 1065 | 290 | 720 |
| 400 | 762 | 838 | 1265 | 335 | 890 |
